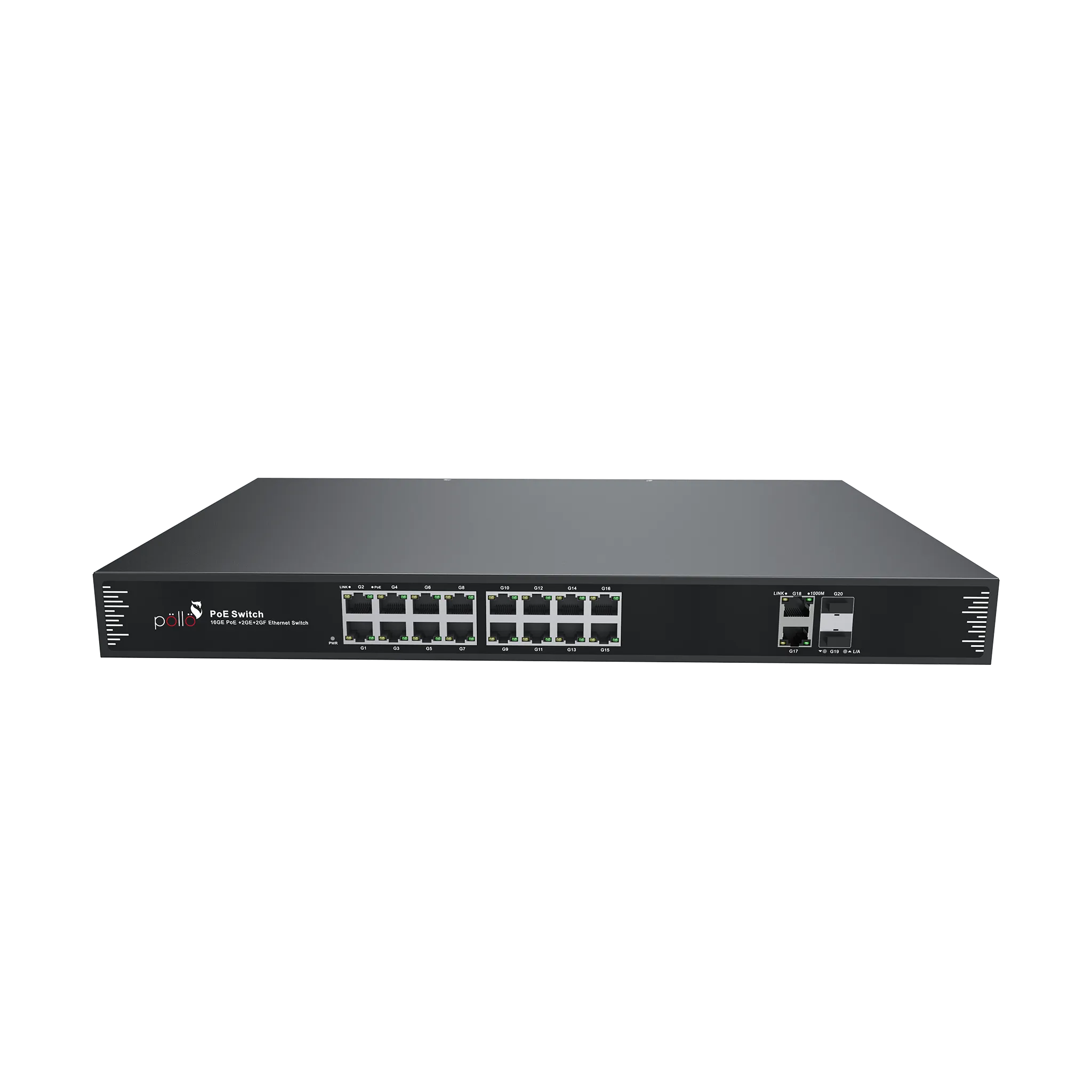

18-Port Gigabit PoE Network Switch with 2 SFP

  • 16 × Gigabit PoE ports for data and power
  • 2 × Gigabit RJ45 uplink ports
  • 2 × Gigabit SFP fiber uplink ports
  • Auto-sensing 10/100/1000Base-T with full/half duplex and MDI/MDI-X
  • Supports Cat3–Cat5e UTP cabling up to 100 meters
  • SFP ports support single-mode and multi-mode fiber (optional modules)
  • Fiber transmission distance up to 120 km depending on module
  • Complies with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
  • Store-and-forward switching with full wire-speed performance
  • 56 Gbps non-blocking switching capacity
  • 29.76 Mpps forwarding rate at 64-byte packets
  • 8K MAC address table with 4 MB buffer memory
  • Supports 9.6K jumbo frames
  • IEEE 802.3af/at PoE with up to 30 W per port
  • Total PoE power budget up to 250 W
  • Built-in AC power supply (100–240 V, 50/60 Hz)
  • LED indicators for power, network, PoE, and fiber status
  • One-button factory reset support
  • Desktop, wall-mount, or 19″ 1U rack installation
  • 4 KV lightning protection with IP30 protection level

Download Datasheet (PDF)

SKU: PLN-1116GB-SFP Category: Tag:
Share Whatsapp
18-Port Gigabit PoE Network Switch with 2 SFP18-Port Gigabit PoE Network Switch with 2 SFP

Specifications

Model PLN-1116GB-SFP
Fixed Port 2*10/100/1000Base-T uplink RJ45 ports (Data) 16*10/100/1000Base-T PoE ports (Data /Power) 2*1000Base-X uplink SFP fiber ports (Data)
Ethernet Port Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) 10BASE-T: Cat3, 4, 5 UTP (≤100 meters)
Optical Fiber Port Gigabit optical fiber interface, default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module. LC)
Optical Cable/ Distance Multi-mode: 850nm/0-550m, Single-mode: 1310nm/0-40km, 1550nm/0-120km
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 56Gbps (non-blocking)
Forwarding Rate @64byte 29.76Mpps
MAC 8K
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch Yes, One-button factory reset
PoE Port Port 1-16
Power Supply Pin 1/2 (+) 3/6 (-)
Max Power Per Port 30W, IEEE 802.3 af/at
Total PWR / Input Voltage 250W/(AC100-240V)
Power Consumption Standby<15W, Full Load<240W
Power Supply Built-in power supply, AC100-240V 50-60Hz, 4.1A
Operation Temp/ Humidity -20~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity -40~+75°C, 5%~95% RH Non condensing
Dimension (L*W*H) 440*290*44.5mm
Net /Gross Weight 3.6kg/4.5kg
Installation Desktop, wall mount, 1U/19” cabinet
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty 3 years, lifelong maintenance
