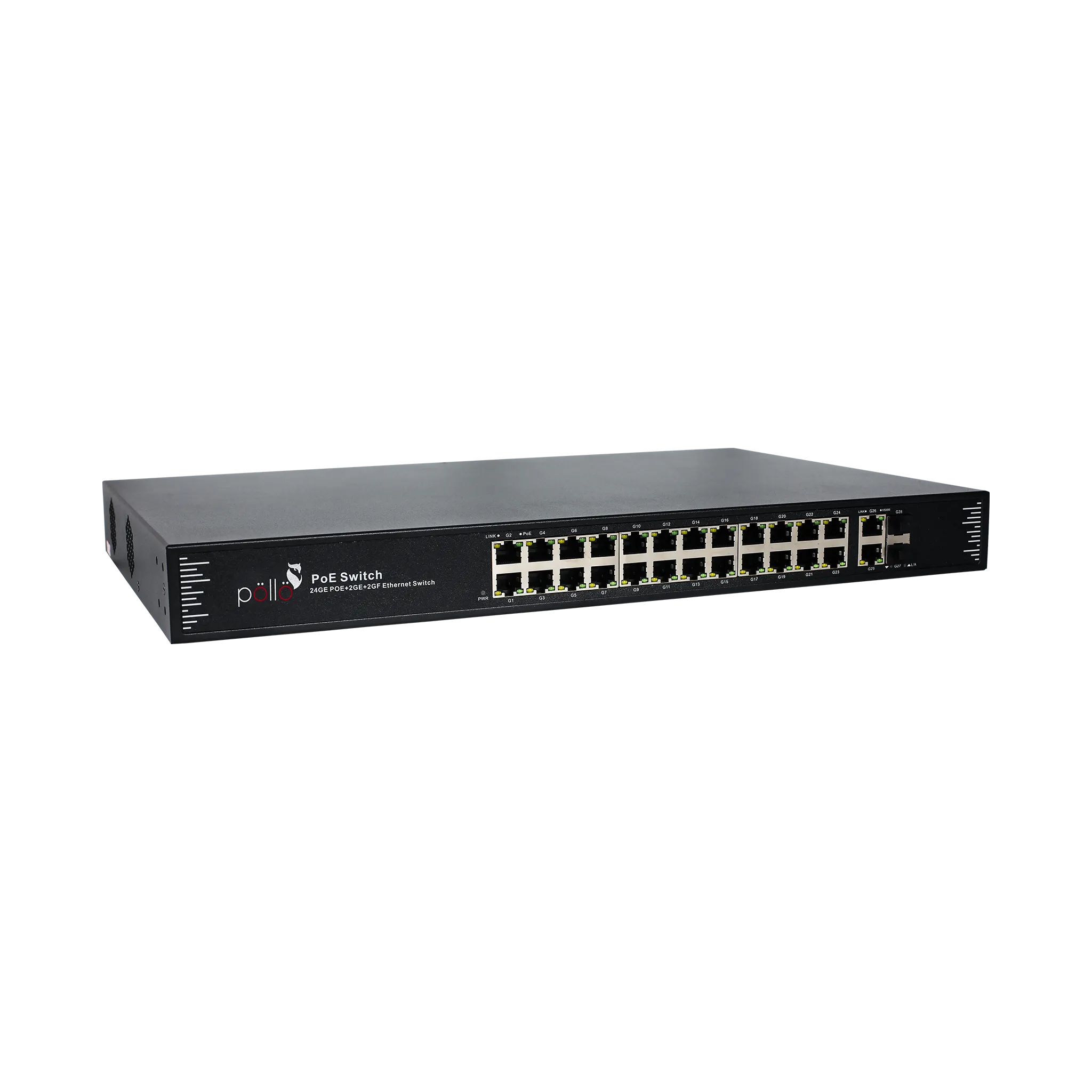

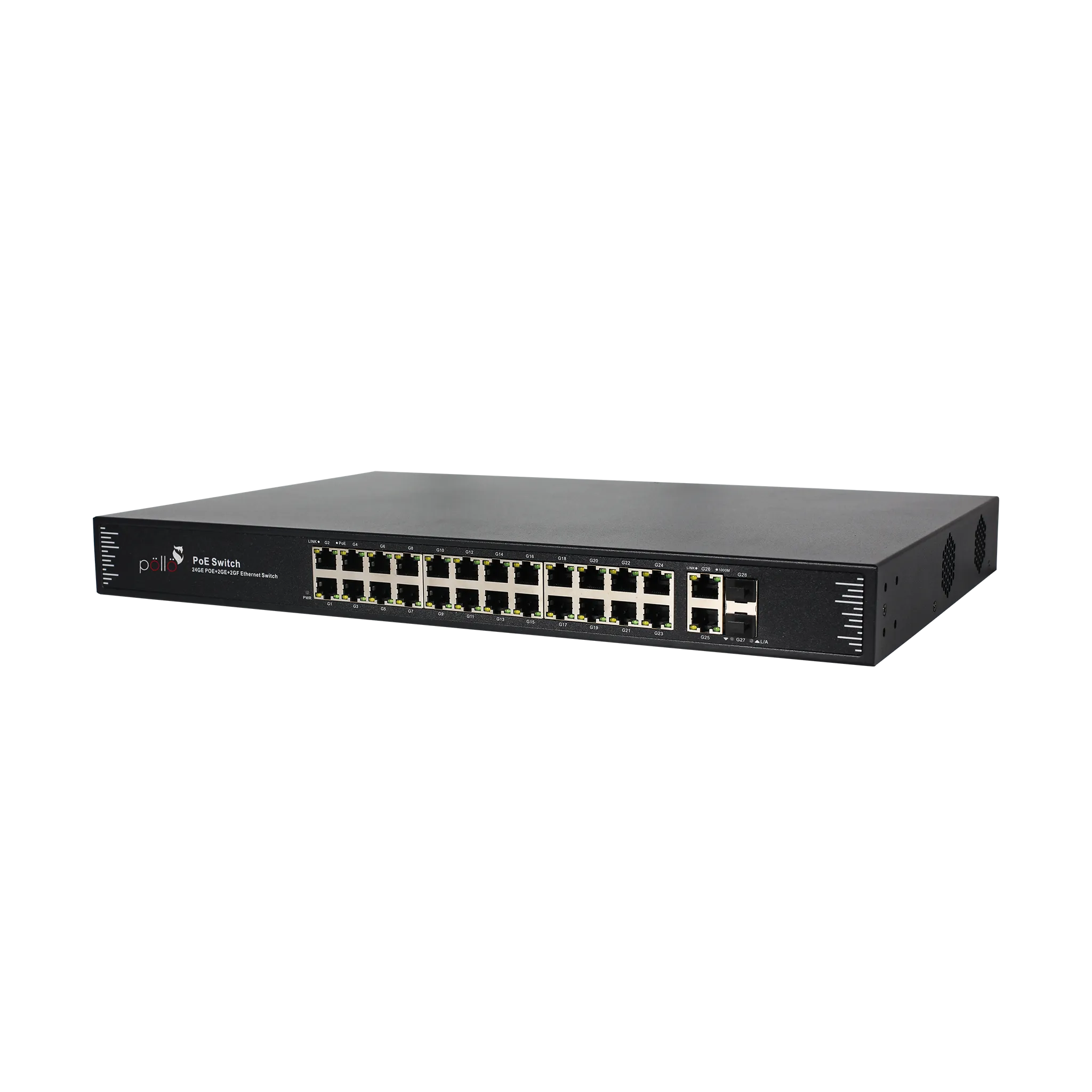

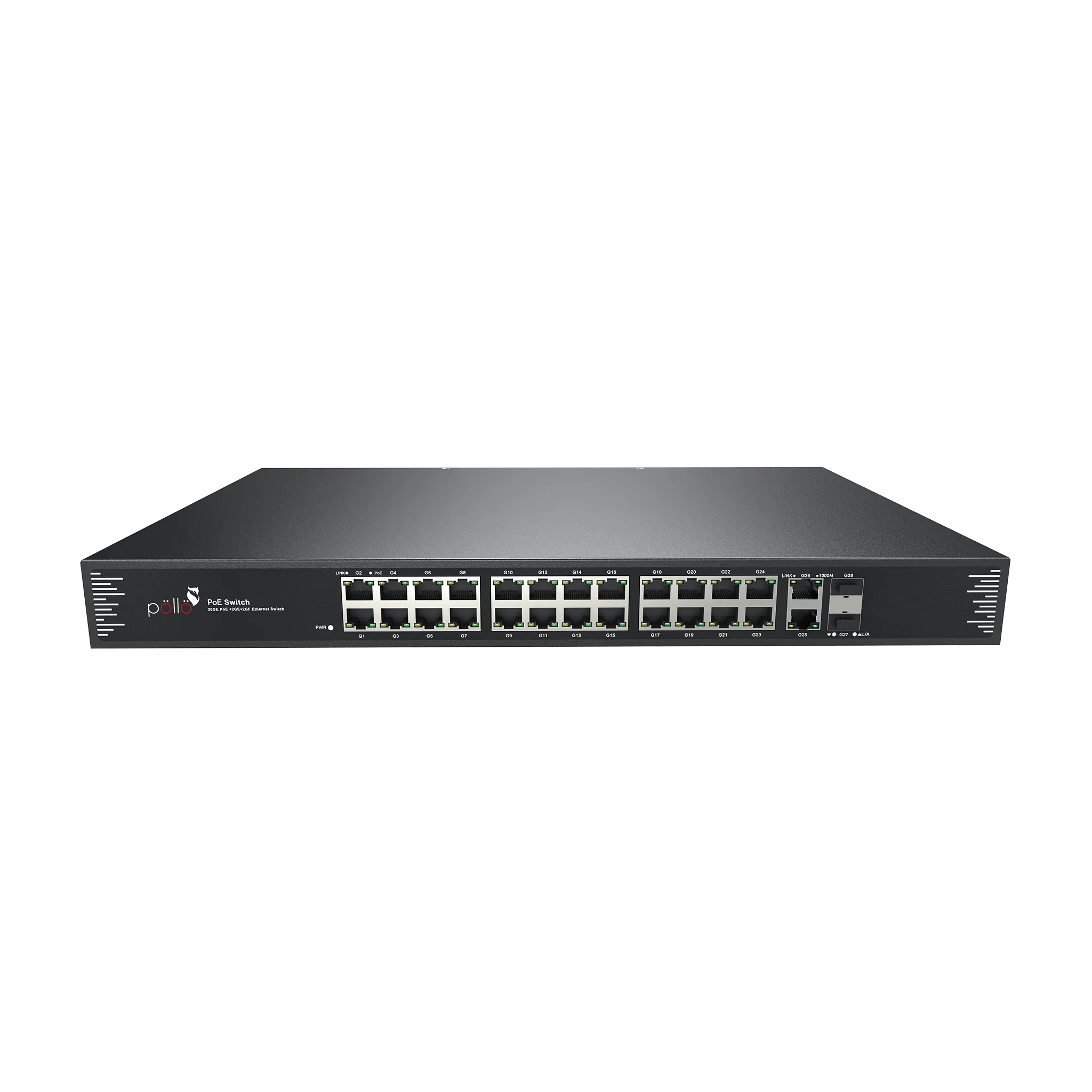

28-Port Gigabit PoE Network Switch with 2 SFP

  • 24 × Gigabit PoE ports (10/100/1000Base-T) for data and power
  • 2 × Gigabit uplink RJ45 ports for high-speed networking
  • 2 × Gigabit SFP uplink slots for fiber connectivity
  • Auto-sensing ports with full/half-duplex and MDI/MDI-X support
  • Supports Cat3–Cat5e UTP with transmission up to 100 meters
  • Gigabit SFP ports support single-mode and multi-mode fiber (optional modules)
  • Optical distance up to 120 km depending on SFP module type
  • Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
  • Store-and-forward switching with full wire-speed performance
  • 56 Gbps non-blocking switching capacity
  • 41.66 Mpps forwarding rate @64-byte packets
  • 8K MAC address table with 4 MB buffer memory
  • Supports 9.6K jumbo frames
  • IEEE 802.3af/at PoE on ports 1–24, up to 30 W per port
  • Total PoE power budget up to 400 W
  • Built-in AC power supply (100–240 V, 50/60 Hz)
  • LED indicators for power, link, PoE, and fiber status
  • One-button factory reset supported
  • Desktop, wall-mount, and 19" 1U rack-mount installation options
  • 4 KV lightning protection with IP30 protection level
  • Certified: CCC, CE, FCC, RoHS

Download Datasheet (PDF)

SKU: PLN-1124GB-SFP Category: Tag:
Share Whatsapp
28-Port Gigabit PoE Network Switch with 2 SFP28-Port Gigabit PoE Network Switch with 2 SFP

Specifications

Model PLN-1124GB-SFP
Fixed Port 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP slot ports (Data) 24*10/100/1000Base-T PoE ports (Data / Power)
Ethernet Port Port 1-24 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X
Twisted Pair Transmission 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) 10BASE-T: Cat3, 4, 5 UTP (≤100 meters)
SFP Slot Port Gigabit SFP optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable Multi-mode: 850nm/0-500M, Single-mode: 1310nm/0-40KM, 1550nm/0- 120KM
Network Protocol IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 56Gbps (Non-blocking)
Forwarding Rate@64byte 41.66Mpps
MAC 8K
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch Yes, One-button factory reset
PoE Port Port 1 to 24
Power Supply Pin 1/2 (+) 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR / Input Voltage 400W (AC100-240V)
Power Consumption Standby<22W, Full Load<380W
Power Supply Built-in power supply AC100-240V 50-60Hz 5.0A
Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity -40~+75°C, 5%~95% RH Non condensing
Dimension (L*W*H) 440*290*44.5mm
Net /Gross Weight <3.8kg/<4.3kg
Installation Desktop, wall-mount, 19&quot
1U rack-mount
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty 3 years, lifelong maintenance
