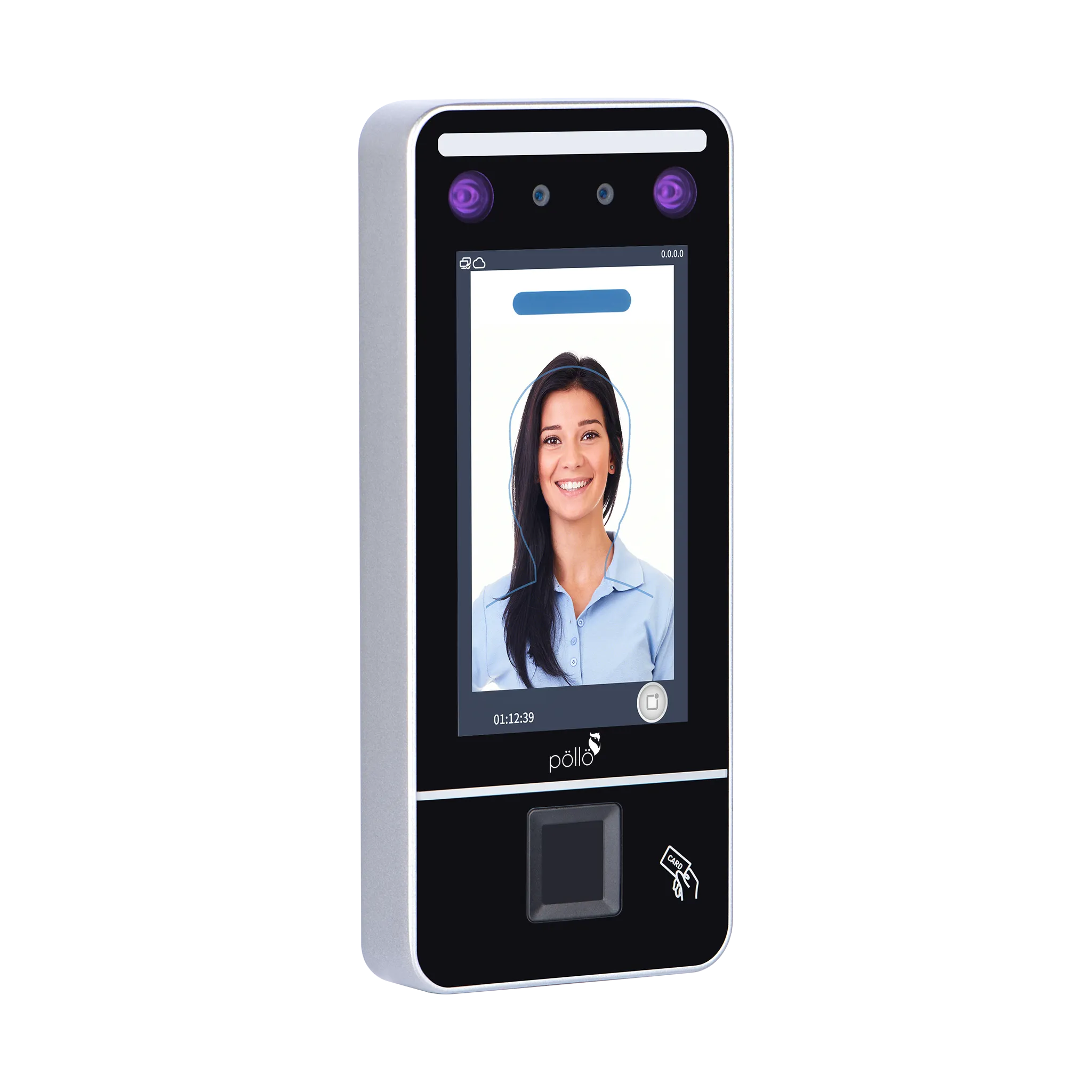

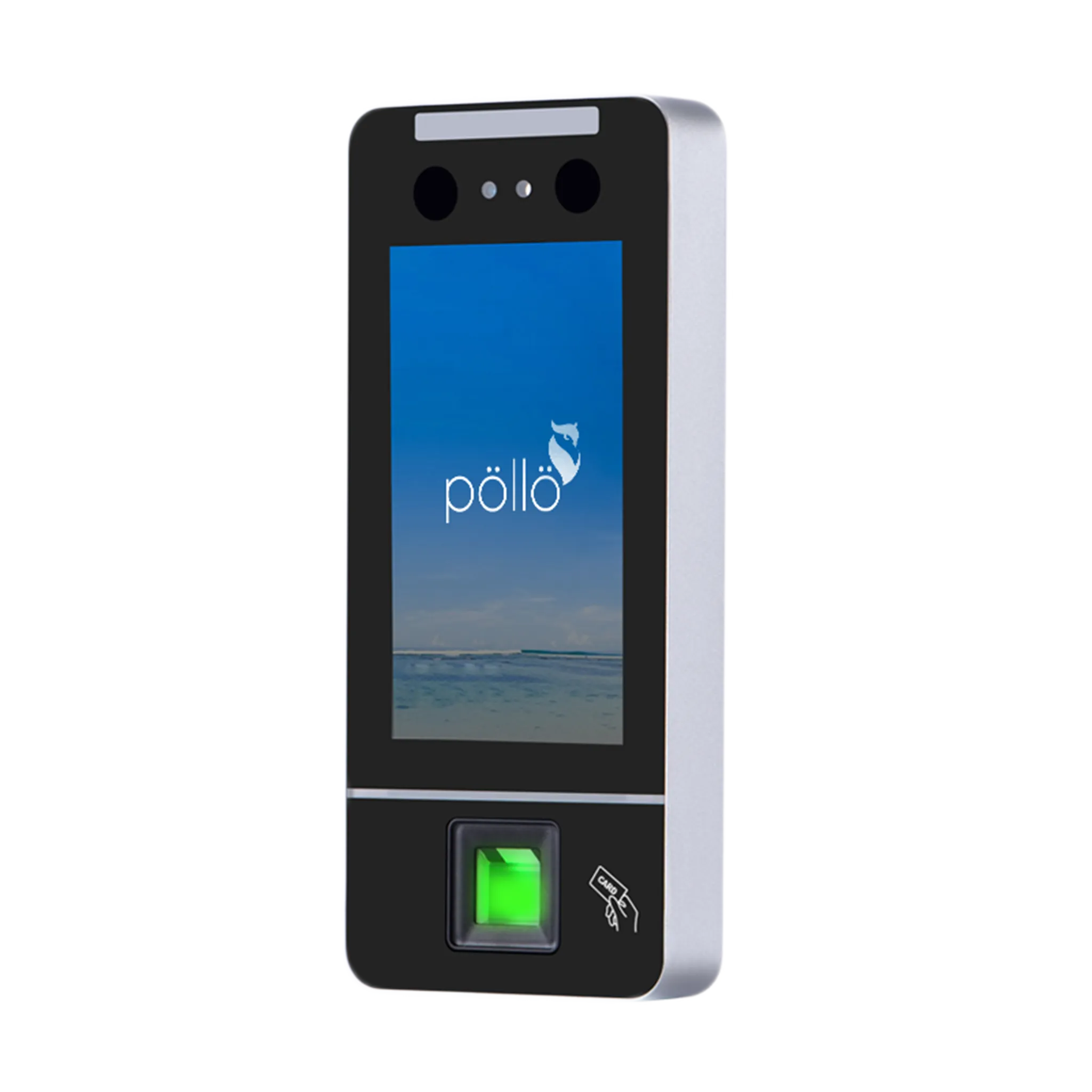

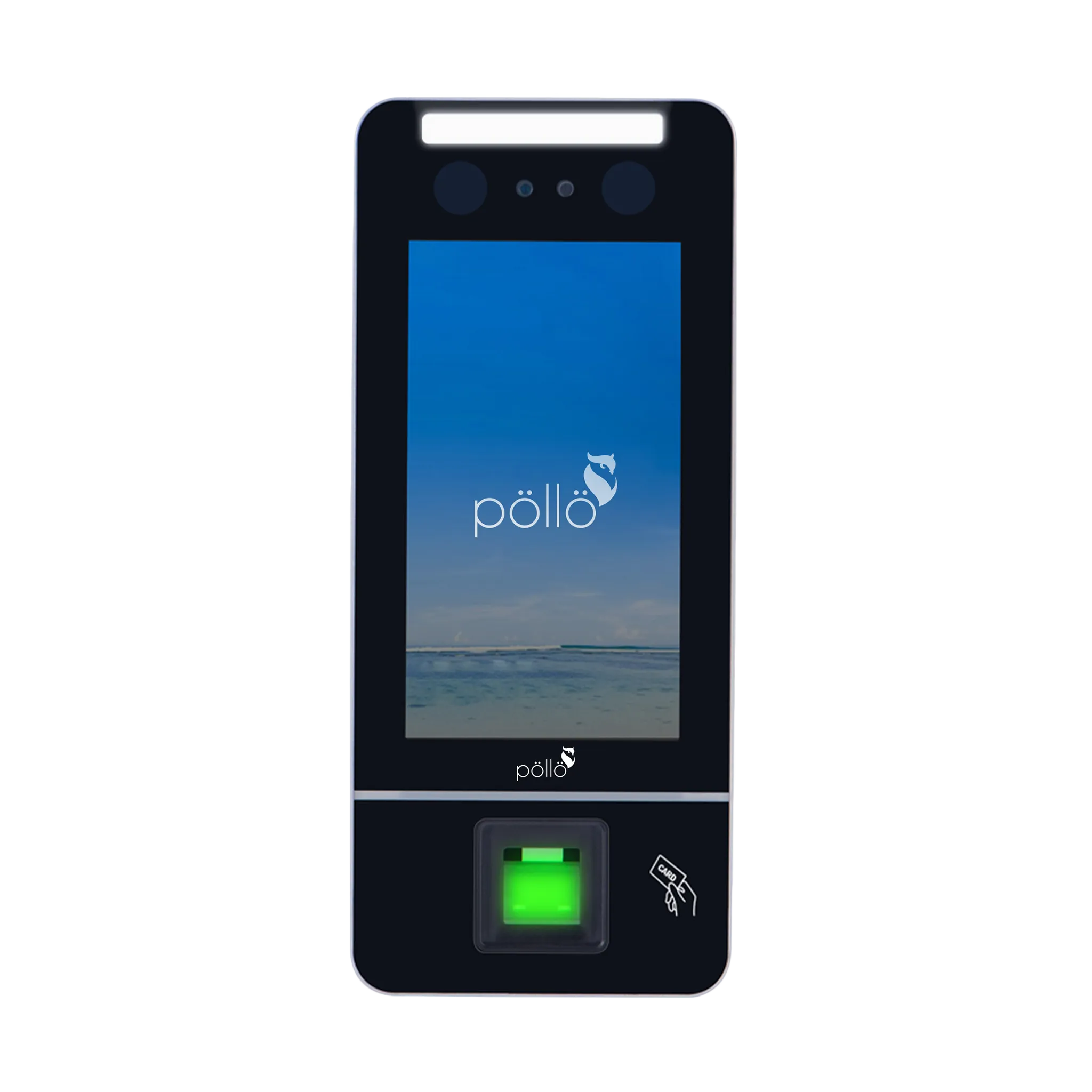

Face Smart – Visible Light Indoor Facial & Palm Recognition

• Advanced biometric access control terminal
• Dual-core 1.2GHz CPU and stable Linux OS
• Equipped with a 5-inch TFT IPS touch screen for clear visuals
• Built-in dual (binocular) 1MP camera enabling face recognition and live detection
• Memory configuration of 256MB RAM and 8GB ROM
• Supports nighttime filling light
• Support photosensitive sensor for low-light environments
• Uses dynamic face detection and tracking algorithms
• High-speed recognition with ~20ms face detection
• 300ms feature extraction, and ~1s comparison
• Supports face recognition scene photo saving
• Multiple authentication face, palm vein, fingerprint, card, and password
• Large capacity support for 10,000 users
• 6,000 faces, 3,000 palms, and 10,000 fingerprints
• Supports 10,000 cards and passwords
• Stores up to 200,000 transaction logs for attendance
• Recognition distance ranges from 0.5 to 2 meters
• Live detection optimized at 0.5–1 meter
• Designed for indoor use with wide operating range from –30°C to +60°C
• Supports built-in WiFi, along with TCP/IP, USB 2.0
• Compatible with external ID/IC card readers
• Supports serial port, RS485, and Wiegand 26/34
• Full access control I/O including electric lock, door sensor, exit button
• Supports LAN-based device deployment
• Allows screen display content and recognition
