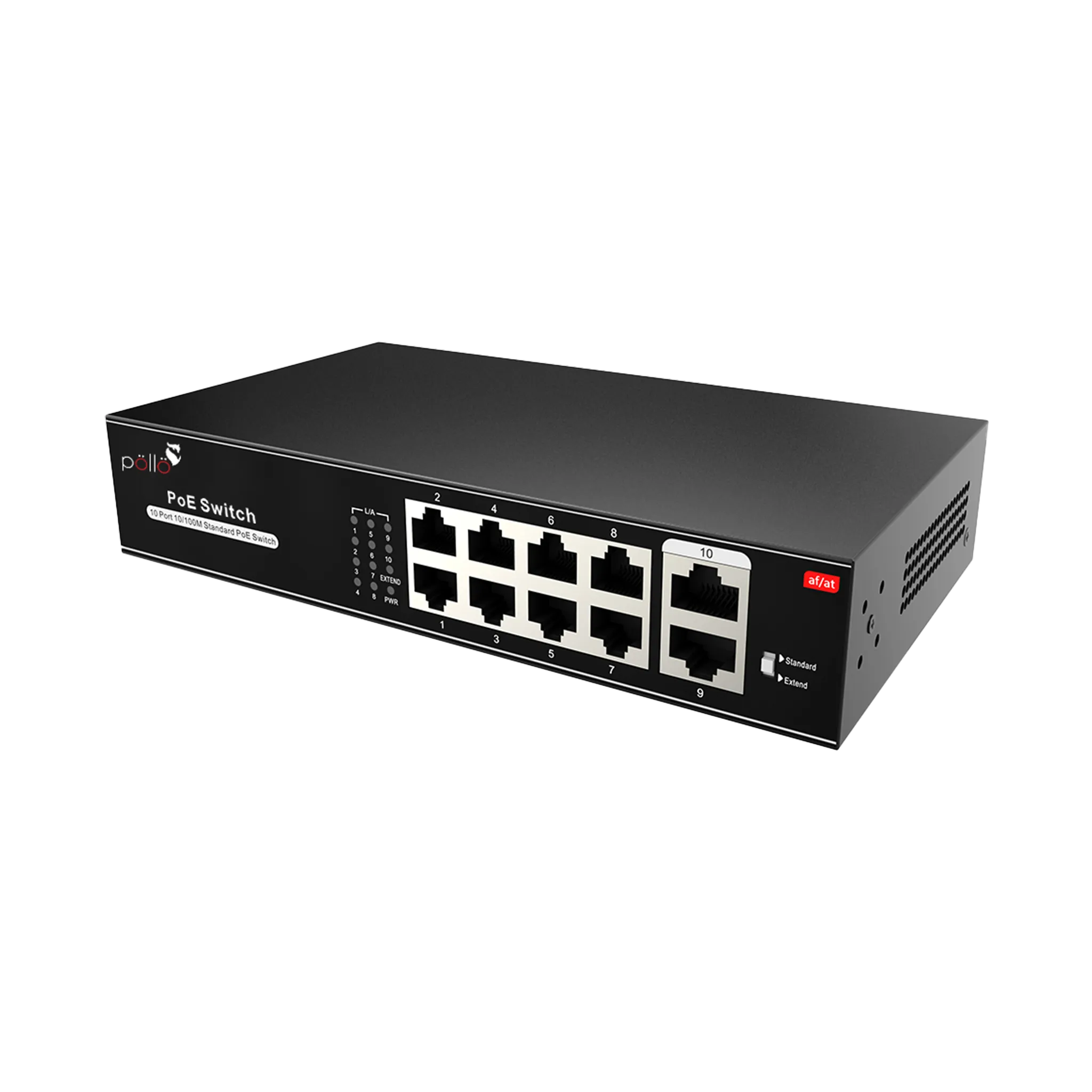

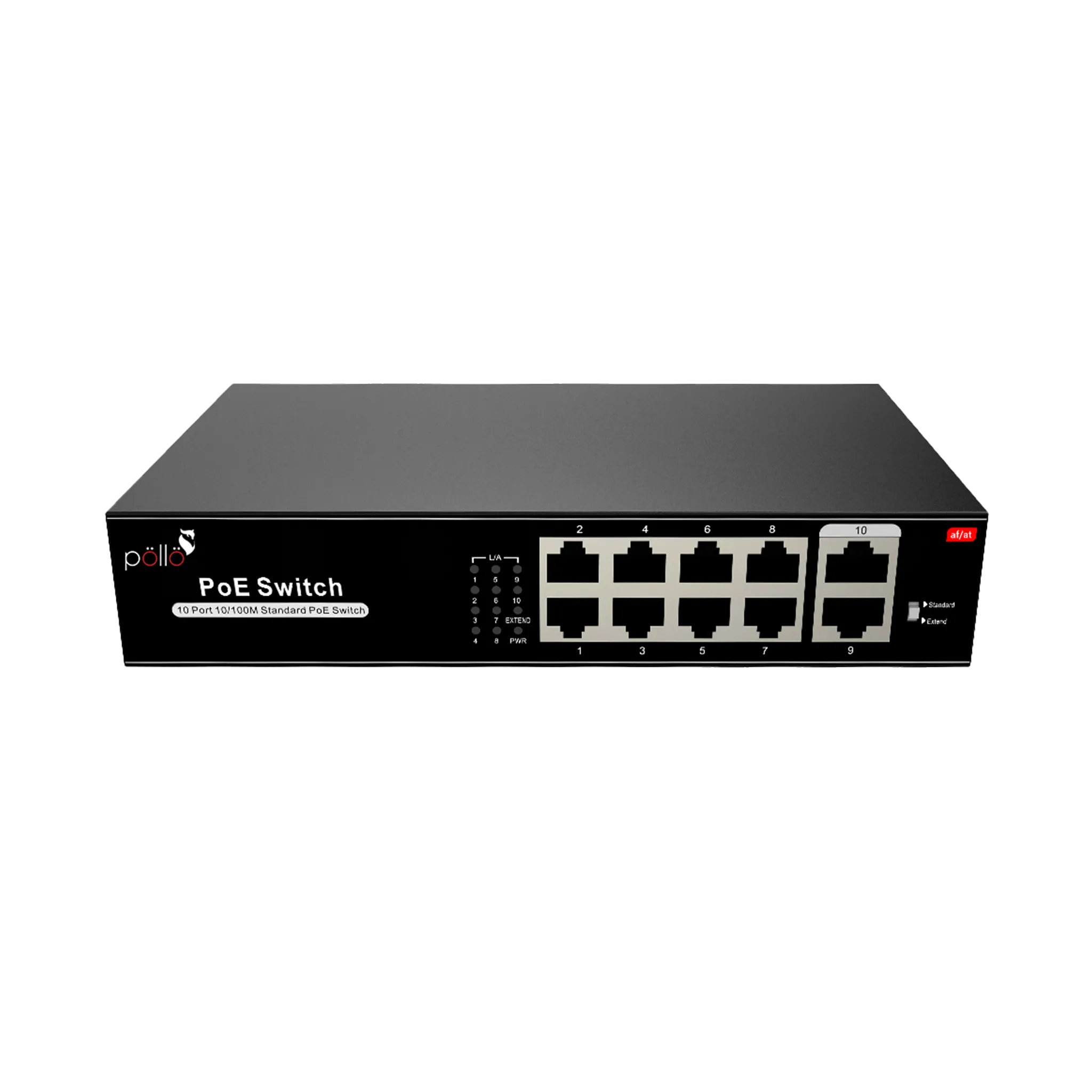

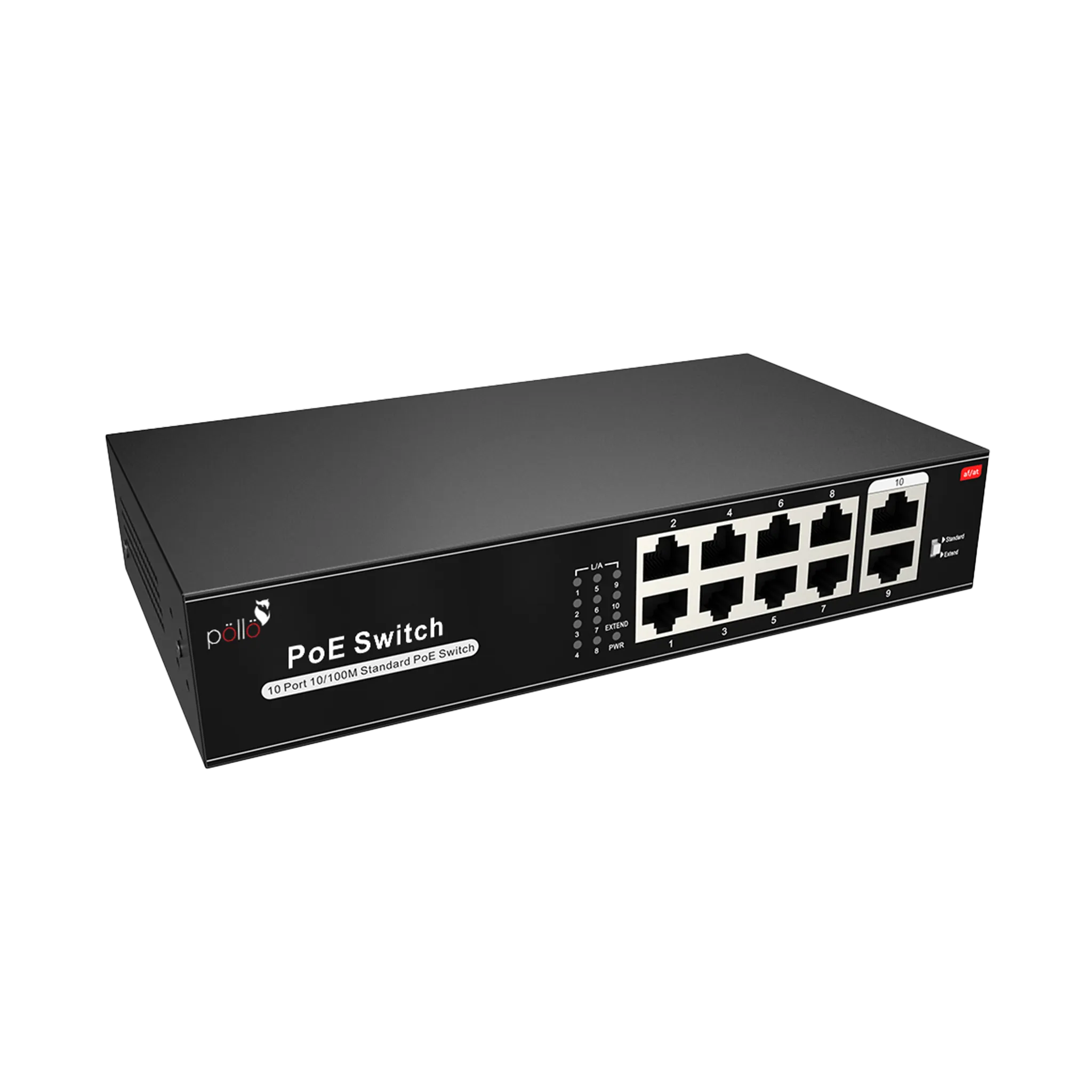

10-Port Megabit PoE Network Switch

  • 8 × 10/100Base-TX PoE ports for data and power delivery
  • 2 × 10/100Base-TX uplink RJ45 ports for network connection
  • All ports support auto-detection, full/half-duplex, MDI/MDI-X
  • Built-in Extender + CCTV mode functional switch
  • Extended transmission up to 250 meters on Cat5 or higher cable
  • Compliant with IEEE 802.3 / 802.3u / 802.3x standards
  • Store-and-forward switching with full wire-speed performance
  • 2 Gbps non-blocking switching capacity
  • 1.488 Mpps forwarding rate 64-byte packets
  • 1K MAC address table with 768 KB buffer memory
  • Supports IEEE 802.3af/at PoE on ports 1–8
  • Maximum 30 W per PoE port
  • Total PoE power budget up to 100 W
  • Built-in AC power supply (100–240 V, 50/60 Hz)
  • Low power consumption: <5 W standby, <100 W full load
  • LED indicators for power, link, PoE, and extender status
  • Operating temperature range -20°C to +55°C
  • Desktop and wall-mount installation options
  • 4 KV lightning protection, IP30 protection level
  • Certified with CCC, CE, FCC, RoHS

Download Datasheet (PDF)

SKU: PLN-1108MB Category: Tag:
Share Whatsapp
10-Port Megabit PoE Network Switch10-Port Megabit PoE Network Switch

Specifications

Model PLN-1108MB
Fixed Port 8*10/100Base-TX PoE ports (Data / Power) 2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port Port 1-10 can support 10/100Base-TX auto-detection, full/half- duplex MDI/MDI-X auto-sensing
Functional Switch 1*(Extender+ CCTV) Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair 10BASE-TX: Cat5 or later UTP (≤250 meter)
Transmission 100BASE-TX: Cat5 or later UTP (≤100 meter)
Network Protocol IEEE802.3u 100Base-TX, IEEE802.3x IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 2Gbps (non-blocking)
Forwarding Rate@64byte 1.488Mpps
MAC 1K
Buffer Memory 768K
LED Indicator Power: PWR (green), network: Link (yellow), PoE: PoE (green) Functional switch: EXTEND (green)
PoE Port Port 1 to 8 IEEE802.3af/at @POE
Power Supply Pin Default 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) 2-pairs power supply
Max Power Per Port 30W, IEEE802.3af/at
Total PWR / Input Voltage 100W/(AC100-240V)
Power Consumption Standby <5W, Full load <100W

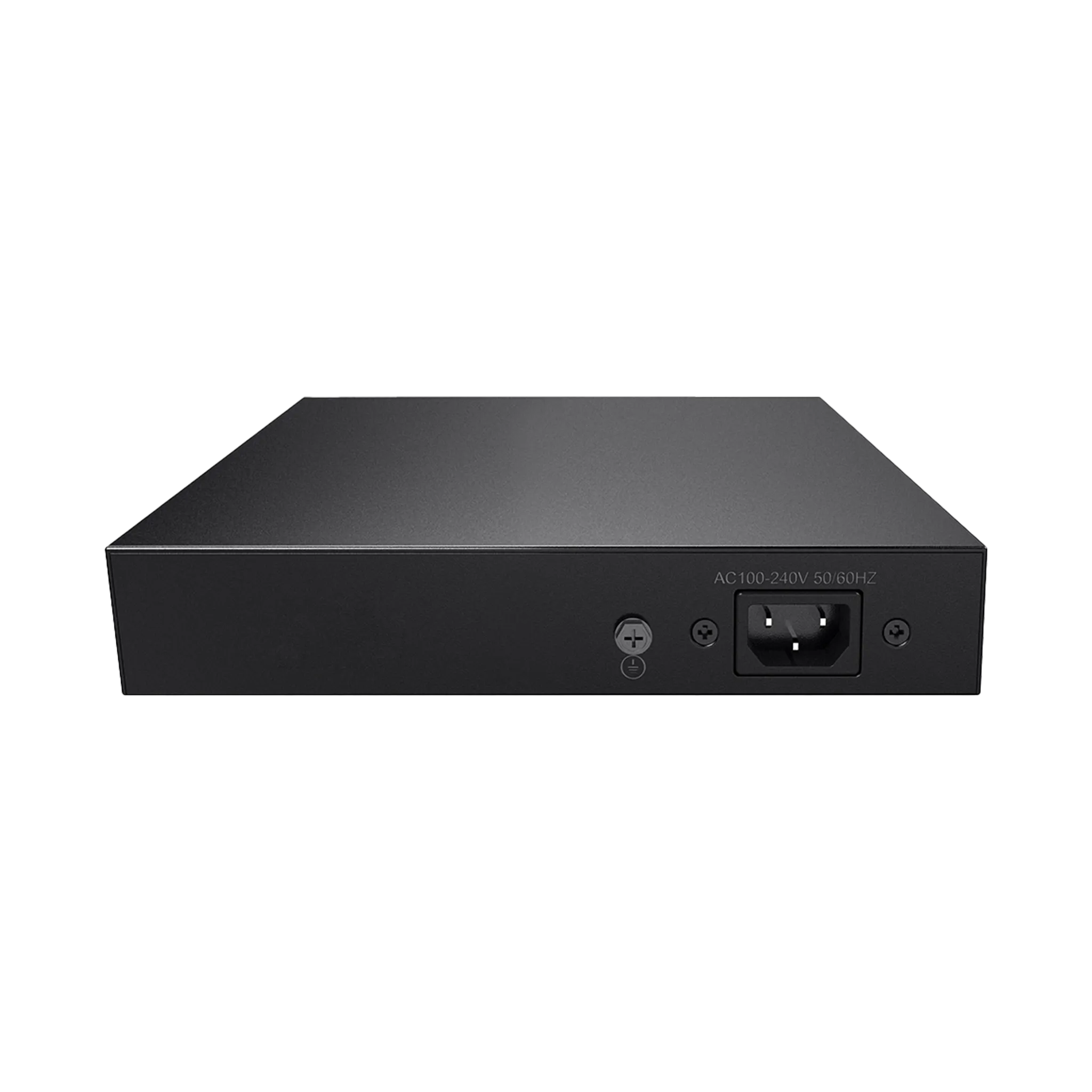

Power Supply Built-in switching power supply, AC100~240V 50-60Hz 2.0A
Operation TEMP / Humidity -20~+55°C
5%~90% RH Non condensing
Storage TEMP / Humidity -40~+75°C
5%~95% RH Non condensing
Dimension (L*W*H) 195*130*40mm
Net /Gross Weight <0.8kg / <1.2kg
Installation Desktop, wall mounted
Lightning protection / protection level Lightning protection: 4KV 8/20us
Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN60950 FCC Part 15 Class B, RoHS
