Specifications
| Model | PLC-HS303-T |
|---|---|
| Form Factor | PT Dome Camera |
| Product Colour | White |
| Antenna | external antenna |
| Materials | ABS + PC + Anti – UV |
| Surface Finishing | Dumb face or grain |
| waterproof level | IP66 |
| Dimension (L*W*H)(mm) | 119*89*86mm |
| Flash | 8MB |
| optics | 4.0mm，F2.6 aperture, waterproof |
| Viewing angle | D*H*V 101°*85°*45° |
| Image circle | Ø7 |
| Dimension | M12*22.9mm； |
| Sensor Type | MIS2008 |
| Resolution | 2304*1296 Pixel |
| Night Vision | 10M distance |
| IR-LED | 3pcs IR（IR+White）led*0.5W ， |
| WHITE-LED | 10m (850nm), White light colour temperature：4000K（pure white） |
| IR-CUT | Normal |
| photosensitive | Colour cut black ≤0.5Lux； Cut the black colour≥ 8.5Lux |
| Working Indicator | red green light*1 |
| Standard | RTL8188FTV |
| Mic | Full duplex, sensitivity: ≥-32±3dBm, IP66 waterproof |
| Speaker | Built-in 8 ω/2W, IP66 waterproof |
| TF Card | Max support 128G |
| Button Switch | reset *1 |
| Ethernet | Aside: JL1101 |
| Antenna | 3DBi * 1 |

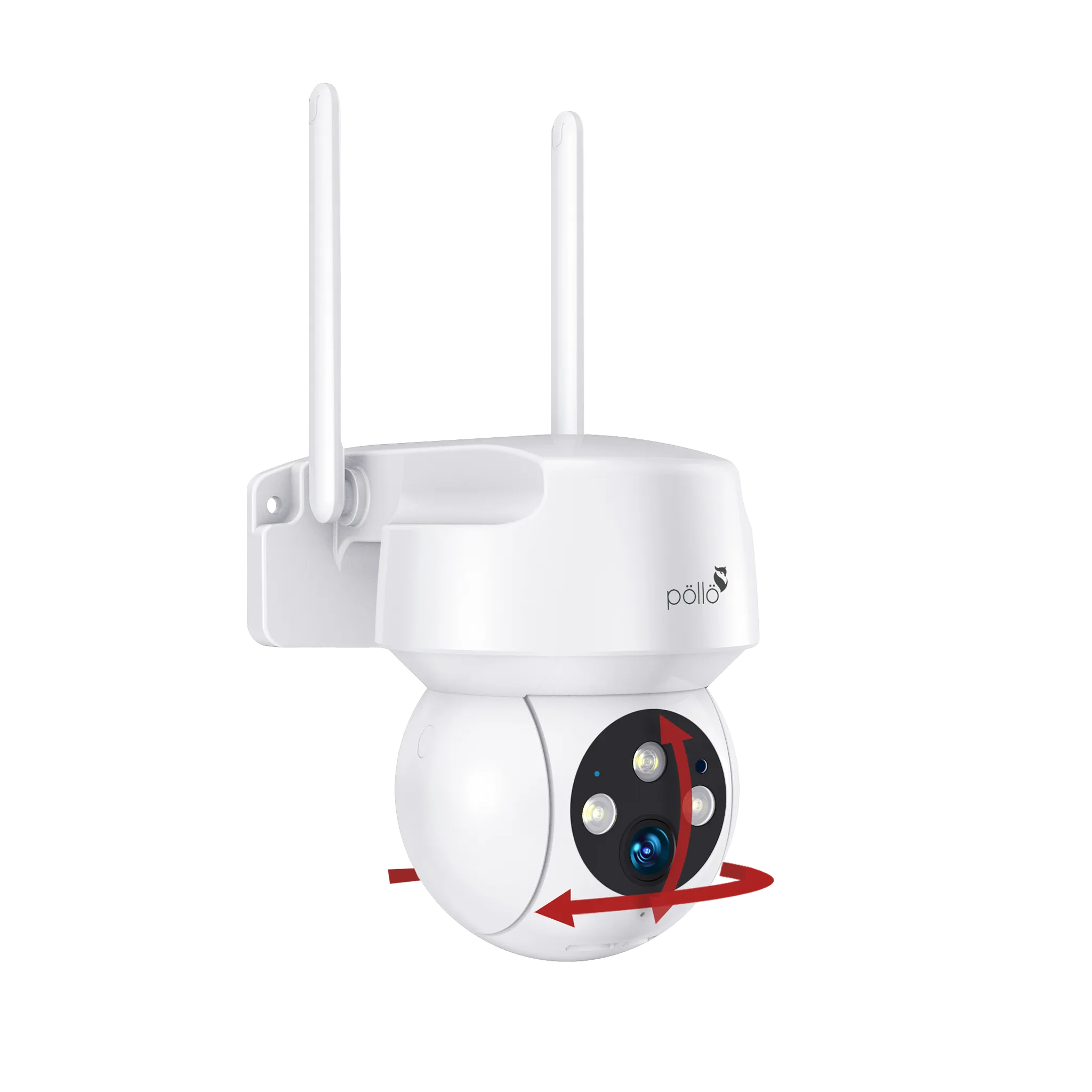

| Horizontal angle | 336° |
| Vertical angle | 108° |
| Wifi Maximum rate | 54 Mbps |
| Wifi Distance | open≥120m |
| Wifi Standard | IEEE 802.11 b/g/n, single frequency 2.4G |
| Power Supply | USB Port 5V |
| Operational power consumption | Max 4.5W |
| I/O Input port | TF Card*1, Mic*1, |
| I/O Power port | USB2.0, 2P/1.5mm， 3M long |
| I/O Ethernet port | Reserved: 6P / 1.25 (4P network +2P power supply) No network indicator / power indicator; |
| I/O Output port | Speaker*1； |
| I/O key type | Reset*1； |
| I/O Indicator light | Red and green two-colour indicator light*1； |
| Echo cancellation | Support |
| Two-Way Talk | Support |
| Start-up the bell | Support |
| Rest the bell | Support |
| Audio Compression method | G.711A |
| Video Format | H.264 |
| Video Frame rate | Day：20fps Night：15fps |
| Resolution & frame rate | 2304*1296 Pixel, Multi-bit stream, adaptive； |
| IR turned ON | Enable night vision view, IR, ICR auto detection |
| IR turned OFF | Disable night view, turn off infrared, ICR stays in day view mode； |
| Andorid | Android 4.3 + |
| IOS | IOS 9.X-10.X more |
| Mobile App | Cloud Edge |
| Cloud platform | Amazon |
| Basic Function | Support configuration / real-time preview / screenshot / playback / intercom / video adjustment / recording / PTZ / cloud storage |
| Cloud recording storage | Support |
| On line visitor | Max 5 user |
| Type of Alarm | Support push message, sound and light alarm |
| Human tacking | Support |
| Detection Sensitivity | low/medium/high, default medium |
| Audible alarm | 3 options (default white light is always on) |
| Remote control and monitoring | Support |
| Power failure memory | Support |
| Onvif | Optional |
| Pairing | QR code add, AP hotspot |
| OTA upgrade | Support |
| Green Light slow flash | preview image |
| Green Light Always bright | Unreviewed image |
| Green Light Always bright | online |
| Green Light slow flash | running normally |
| Red Light slow flash Duration: Indicates the duration until the standby network exits | The device enters this state when it is powered on and no network is configured |
