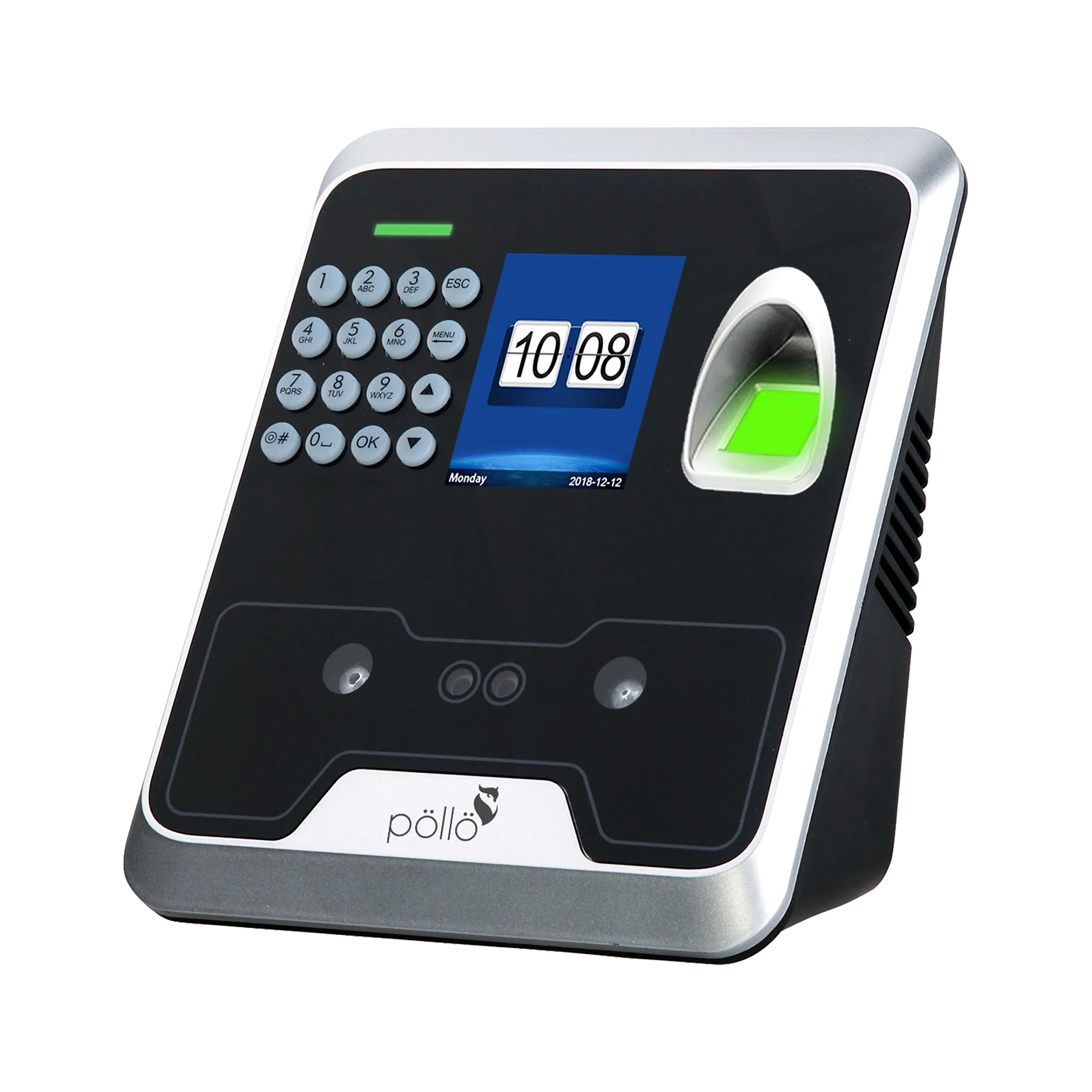

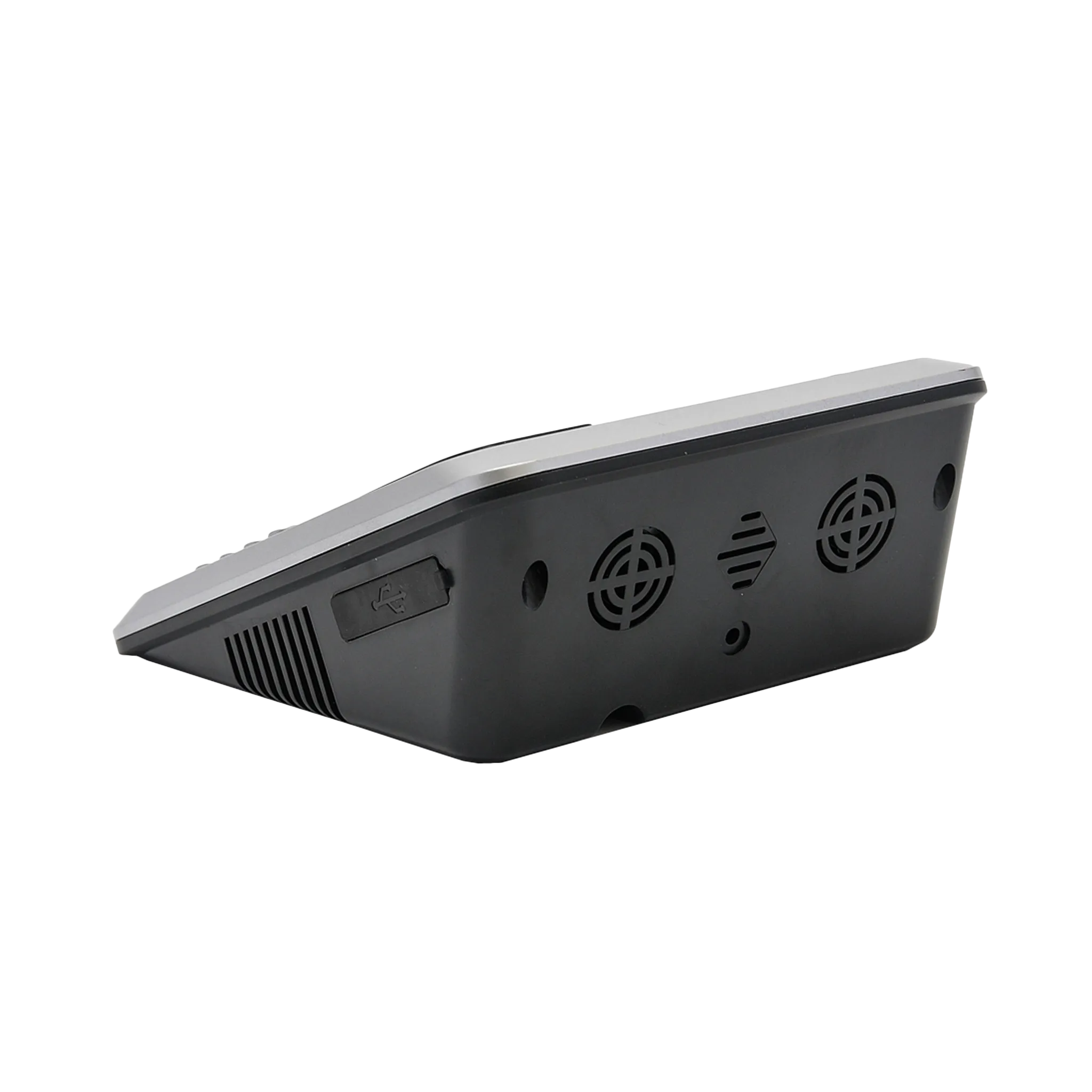

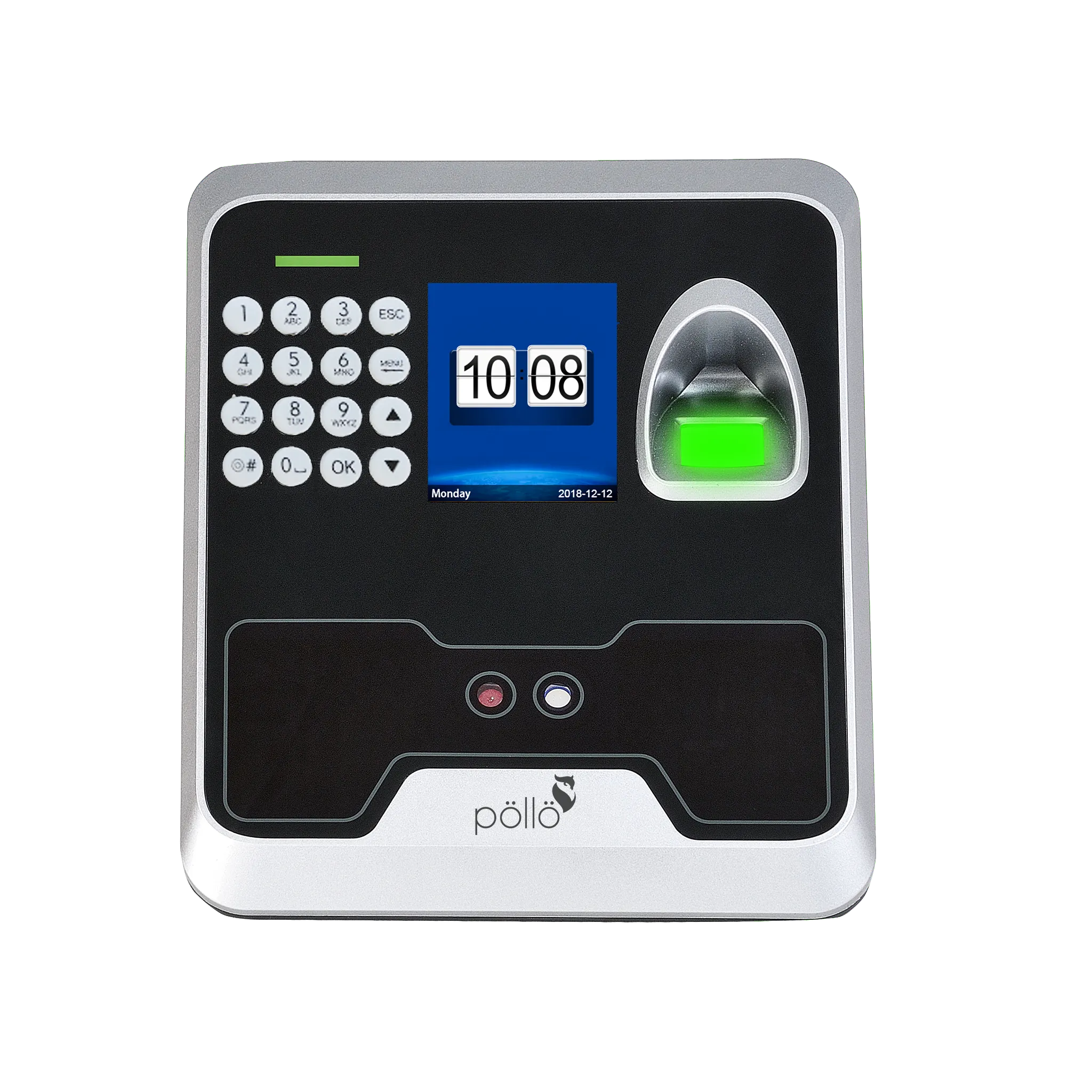

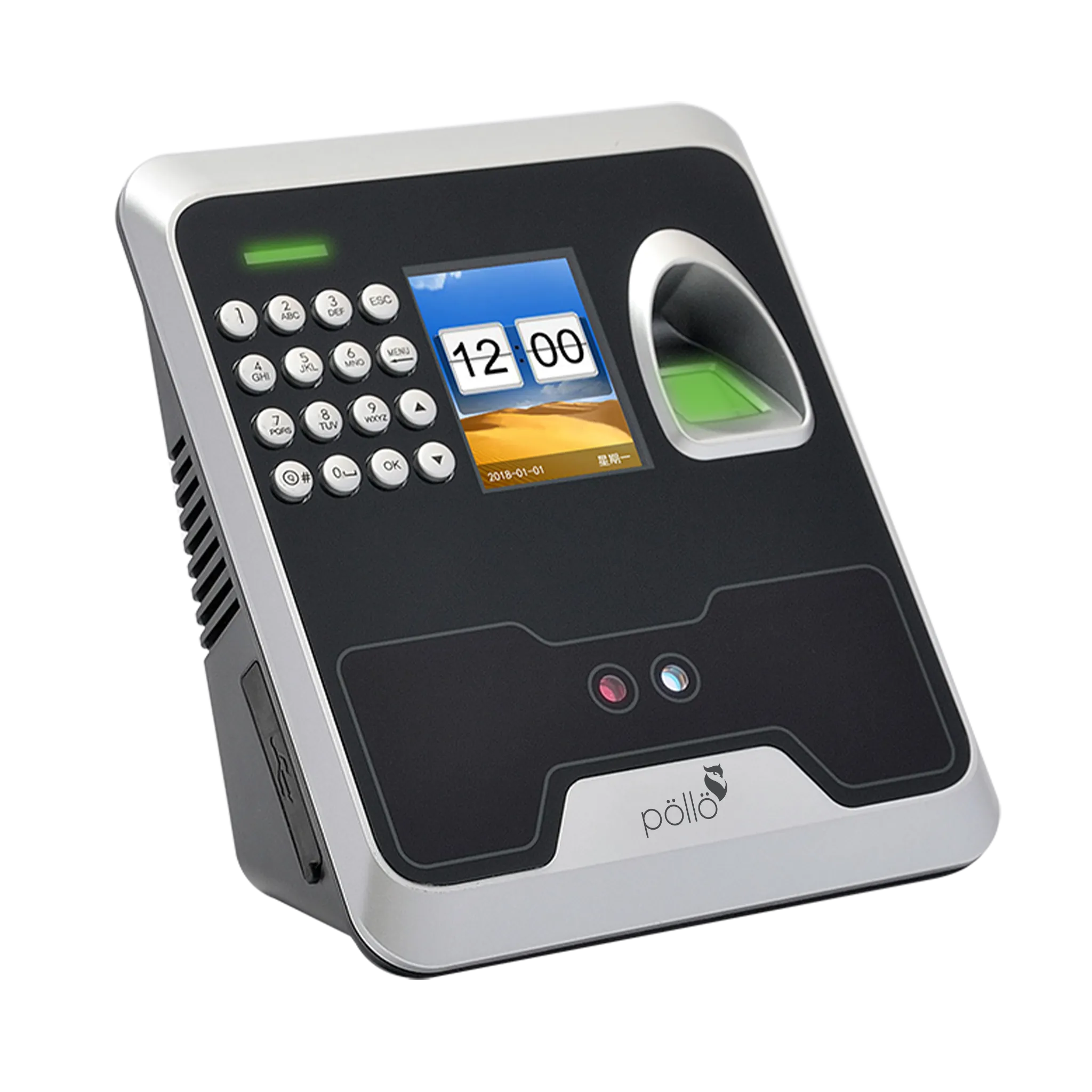

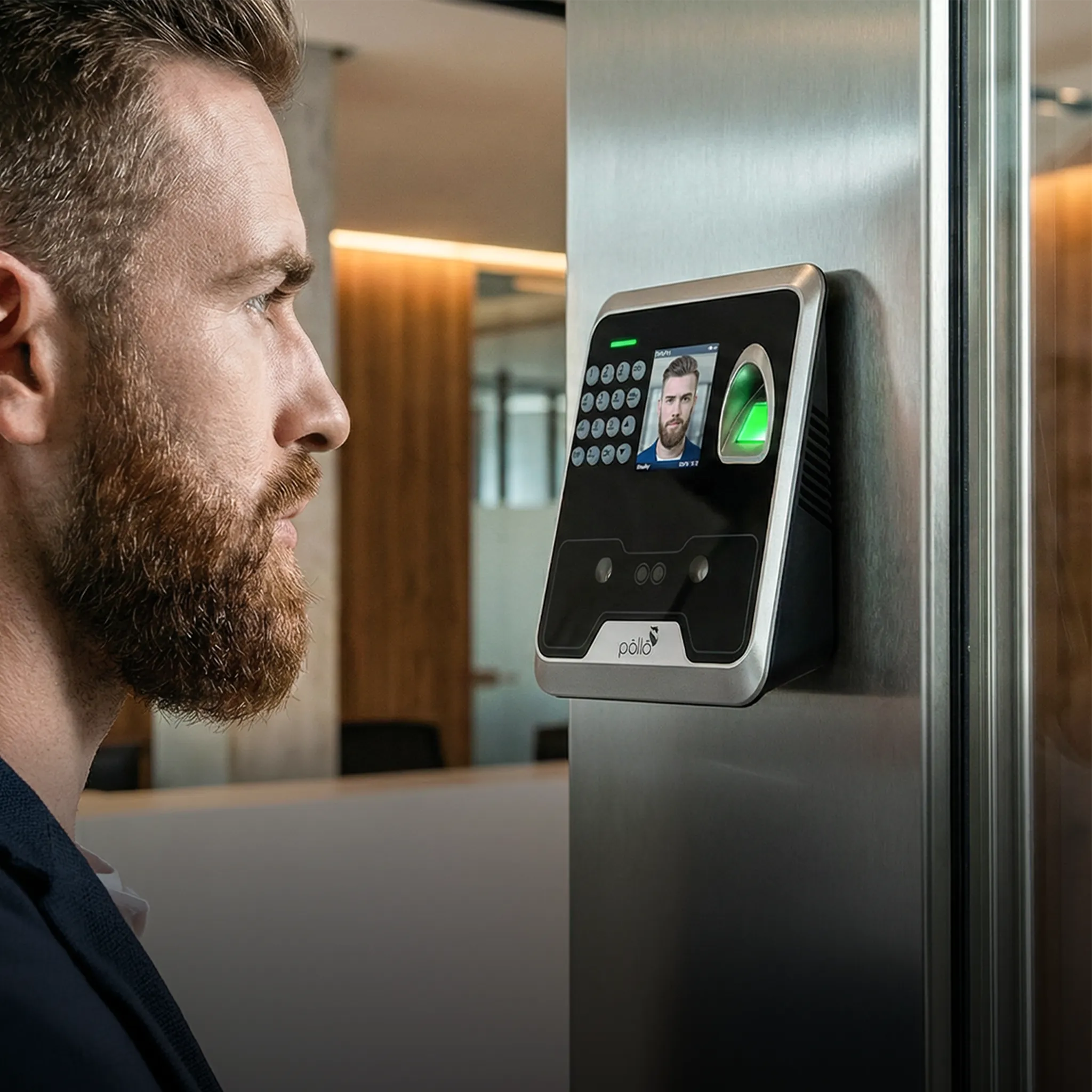

FaceSlim – Face & Fingerprint Biometric Device

  • Face & fingerprint biometric authentication
  • Face capacity up to 1,000 users
  • Fingerprint capacity up to 10,000 users
  • Log storage up to 200,000 records
  • 400 MHz high-performance CPU
  • 2.4" touch color LCD (320 × 240)
  • Multiple attendance modes supported
  • Fast verification time < 0.5s (1:N)
  • Low false rejection rate (<1%)
  • Ultra-low false acceptance rate (<0.0001%)
  • TCP/IP and USB (host & slave) communication
  • Wiegand input & output support
  • Dual relay interface for access control
  • Supports multiple languages
  • 16-bit Hi-Fi voice prompts and sound indication
  • Optional RF card support (125 kHz EM / 13.56 MHz Mi fare)
  • Built-in 2.4 GHz Wi-Fi
  • Door control and alarm support
  • Backup battery for 2–4 hours operation
  • Compact design suitable for indoor use

Download Datasheet (PDF)

SKU: PLF-S1000 Category: Tag:
Share Whatsapp
FaceSlim - Face & Fingerprint Biometric DeviceFaceSlim - Face & Fingerprint Biometric Device

Specifications

Model PLF-S1000
Biometric Measurement Face &amp
Fingerprint
Face Capacity 1,000
Fingerprint Capacity 10,000
Log Capacity 200,000
CPU 400 MHz
LCD Display 2.4&quot
Touch Colour Screen 320 x 240 Pixels
Interface TCP/IP, USB (Host and Slave), 2×Relay, Wiegand (In &amp
Out)
Language English, Arabic, French, Korean, Spanish, Portuguese, etc
Attendance Mode Face + Fingerprint Face or Fingerprint or Password or Card, Card + Password or Fingerprint + Card + Password
Voice Instruction 16-bit Hi-Fi Voice &amp
Sound Indication
Verification Time <0.5 s [1: N]
FRR (False Rejection Rate) <1%
FAR (False Acceptance Rate) <0.0001%
Power Source 12 V DC/2 A
Operating Temperature 0°C – 45°C
Operating Humidity <90% RH
Dimensions (mm) 147 x 175 x 62
Weight (kg) 0.3
Backup Battery 2 – 4 Hours for Working
Wi-Fi 2.4 GHz
RF Card 125 kHz EM/13.56 MHz Mifare
Door Control Door Control &amp
Alarm
